Aviom D400 A-Net Distributor: Empowering Your Personal Mixing System

Streamlined Connectivity, Robust Performance

The Aviom D400 A-Net Distributor bridges the gap between your personal mixing system's inputs and the Personal Mixers. It not only supplies power but also transmits a pristine digital audio stream to your Aviom Personal Mixers through standard Cat-5e cables.

Choose Your Fit

• D400 (Standard): Features an A-Net input, ideal for analog input modules or digital console cards from Aviom or third-party partners.
• D400-Dante: Equipped with a Dante input, enabling routing of up to 32 channels from a Dante-enabled console or digital audio network to the Personal Mixers.

Simple Setup, Remarkable Performance

For personal mixing systems using analog input modules or an A-Net console card, like the Y1 A-Net Card for Yamaha digital consoles, opt for the standard D400.

With one Pro16 A-Net In and eight powered A-Net Outs, you can effortlessly provide power and audio to up to eight Aviom Personal Mixers. Additionally, the D400 includes an unpowered A-Net Out, perfect for linking extra A-Net Distributors in systems with more than eight Personal Mixers.

Expand Your System

When you need more than eight Personal Mixers, both the D400 and D400-Dante come equipped with an A-Net Out port, facilitating the forwarding of the incoming audio stream (regardless of its original source) to additional A-Net Distributors. There's virtually no limit to the number of A-Net Distributors and Personal Mixers you can incorporate into your setup.

Stereo Links Made Easy

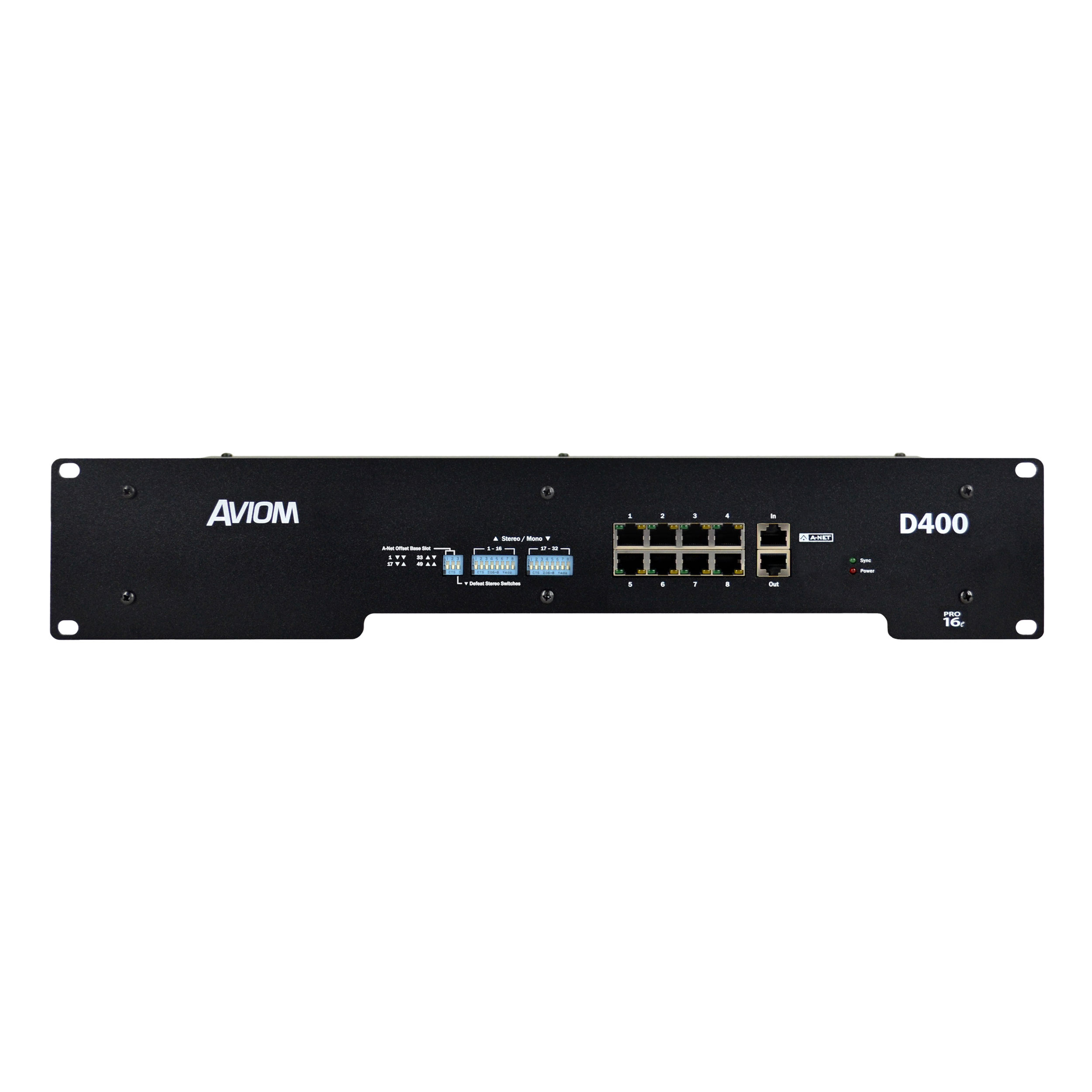

Stereo Links, a valuable feature on A320 and A360 Personal Mixers, enable pairing of adjacent channels to a single mix channel button. The D400 and D400-Dante offer the flexibility of configuring stereo links via DIP switches on the A-Net Distributor's front panel, rather than at the input device.

Technical Specifications

• A-Net Out to Personal Mixers: Eight RJ45 connectors, powered
• A-Net Out: Pro16e A-Net; RJ45 connector, unpowered
• LEDs: Power On (red); Network Sync (green)
• Stereo Link: Two 8-position DIP switch blocks (1-16, 17-32)
• Output Voltage for Personal Mixers: 24VDC, 0.5 amp, Transmitted over the Cat-5e cable
• A-Net Cables: Front Panel Connections: Shielded Cat-5e (or better) cable

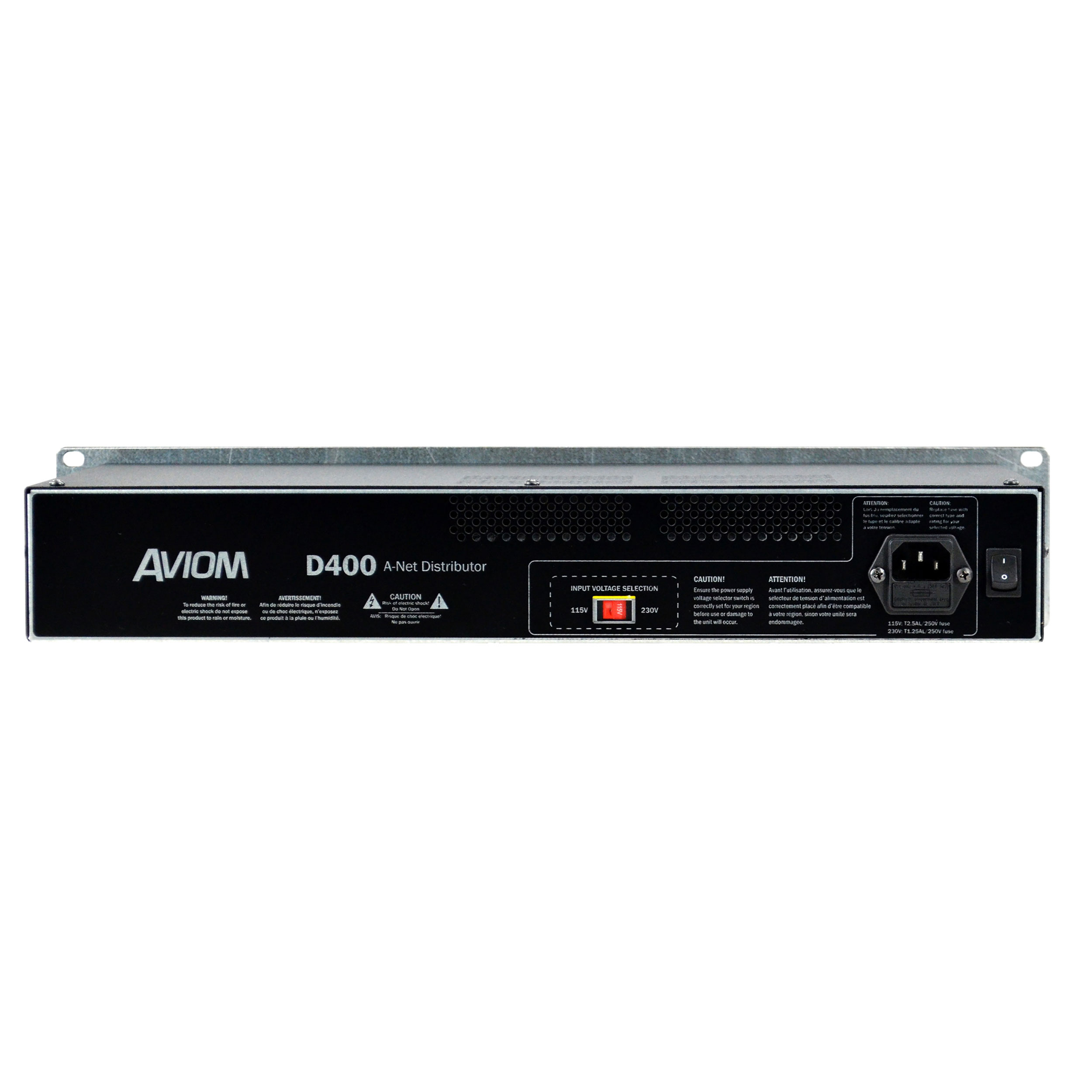

• Power Supply: Internal, IEC connector
• Input Voltage: 100-120 VAC or 200-240 VAC (with selector switch); 50-60Hz @220 W max
• AC Fuse Types: 115V range: T2.5AL/250V; 230V range: T1.25AL/250V
• Dimensions: 19" (482.6 mm) wide x 7.25" (182 mm) deep; 2U, 3.5" (88.9 mm) high
• Weight: 12.0 lbs (5.44 kg)
• A-Net Input: Pro16e A-Net; RJ45 connector
• A-Net Offset Base Slot: 3-position DIP switch selects the starting channel for Personal Mixers (1, 17, 33, or 49)
