Black Lion Audio PBR LIT - LED Patchbay Labeling Display

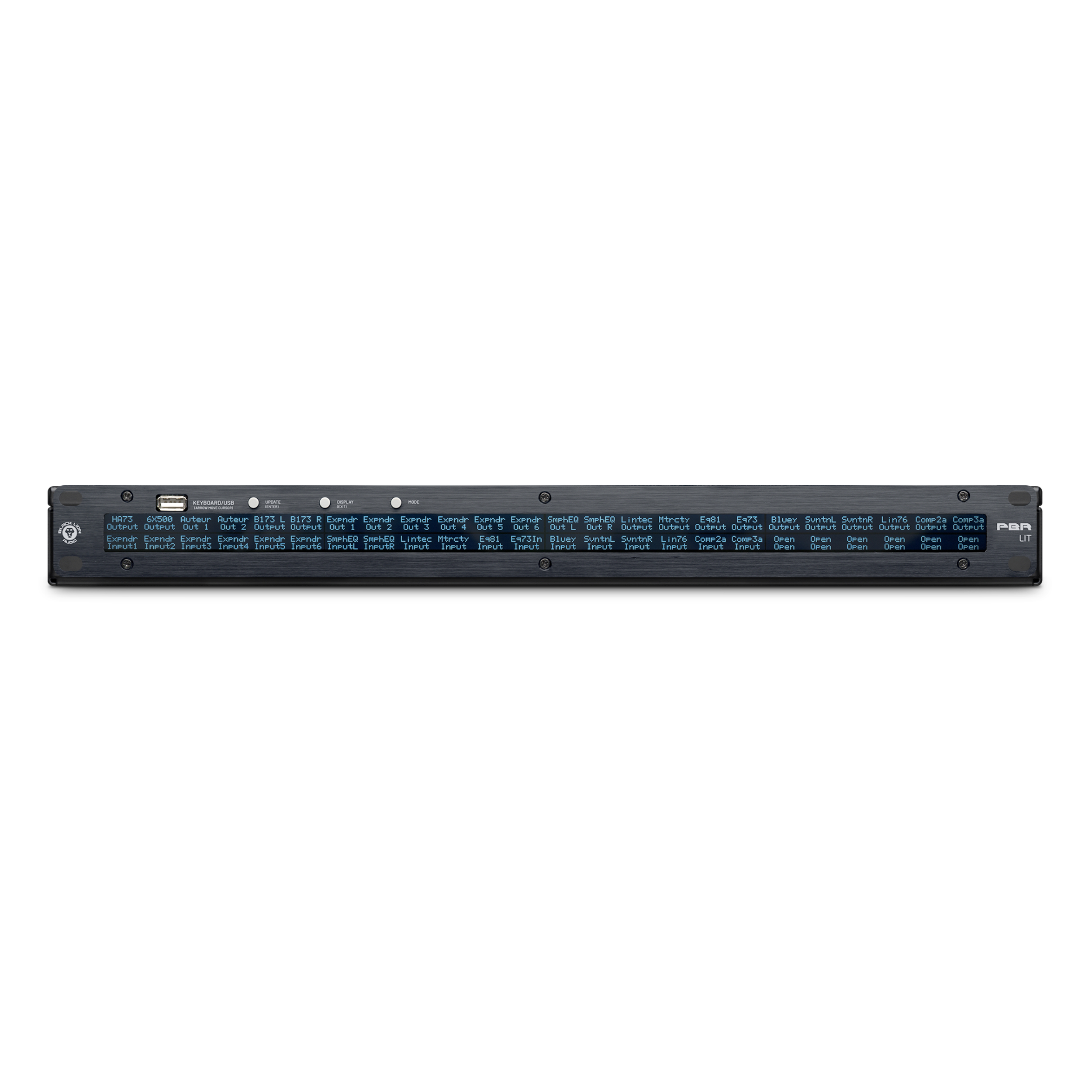

The Black Lion Audio PBR LIT is a 1U LED patchbay display that lets you create bright, customizable digital labels for your existing patchbays. Designed for TRS, TT, and XLR patchbay layouts, PBR LIT makes labeling fast and easy using a USB keyboard or the included Patchcad BLA Edition software. Four display modes include 48-point TRS, 96-point TT, 16-point XLR, and a fully customizable User mode for alternative layouts and creative signage.

Get Lit.

Give your patchbay a labeling system that's easy to read and easy to change. PBR LIT puts a luminous digital display directly above your patchbay, making it simple to identify connections in a busy studio or rack. When your routing changes, simply update the labels rather than replacing handwritten or printed strips.

PBR LIT can be edited directly with a USB keyboard or through the included Patchcad BLA Edition software for Mac and Windows. Save complete layouts and quickly recall your labeling setup whenever your patchbay configuration changes.

A Mode for Every Patchbay

PBR LIT includes four layout modes designed around common professional patchbay formats:

48-Point TRS — Designed for 48-point TRS patchbays.
96-Point TT — Designed for 96-point TT patchbays.
16-Point XLR — Designed for 16-point XLR patchbays.
Custom — Use the entire display to create your own text, alternative patchbay layouts, studio signage, or whatever else you can imagine.

The Custom mode makes PBR LIT more than just a patchbay labeler. Use the display for creative studio signage, equipment identification, routing information, or other custom text.

Edit Labels Your Way

For quick changes, connect a USB keyboard directly to the PBR LIT and edit your labels without a computer. For more extensive layouts, the included Patchcad BLA Edition software for Mac and Windows lets you create, edit, and save complete labeling layouts.

Built Black Lion Tough

Black Lion Audio designed PBR LIT with the durability required for professional studio and touring environments. Its reinforced steel chassis and black-anodized aluminum faceplate provide a rugged foundation, while the sleek black finish and futuristic blue LED illumination give your rack a modern, professional appearance.

Key Features
