2Control Stereo Monitor Controller
Elevate your audio mixing experience with the 2Control Stereo Monitor Controller, a compact yet powerful device designed for near-field and full-range monitoring. This analog controller is enhanced with SPL’s unique crossfeed control for headphone monitoring, ensuring your mixes translate seamlessly from headphones to speakers.
Key Features:

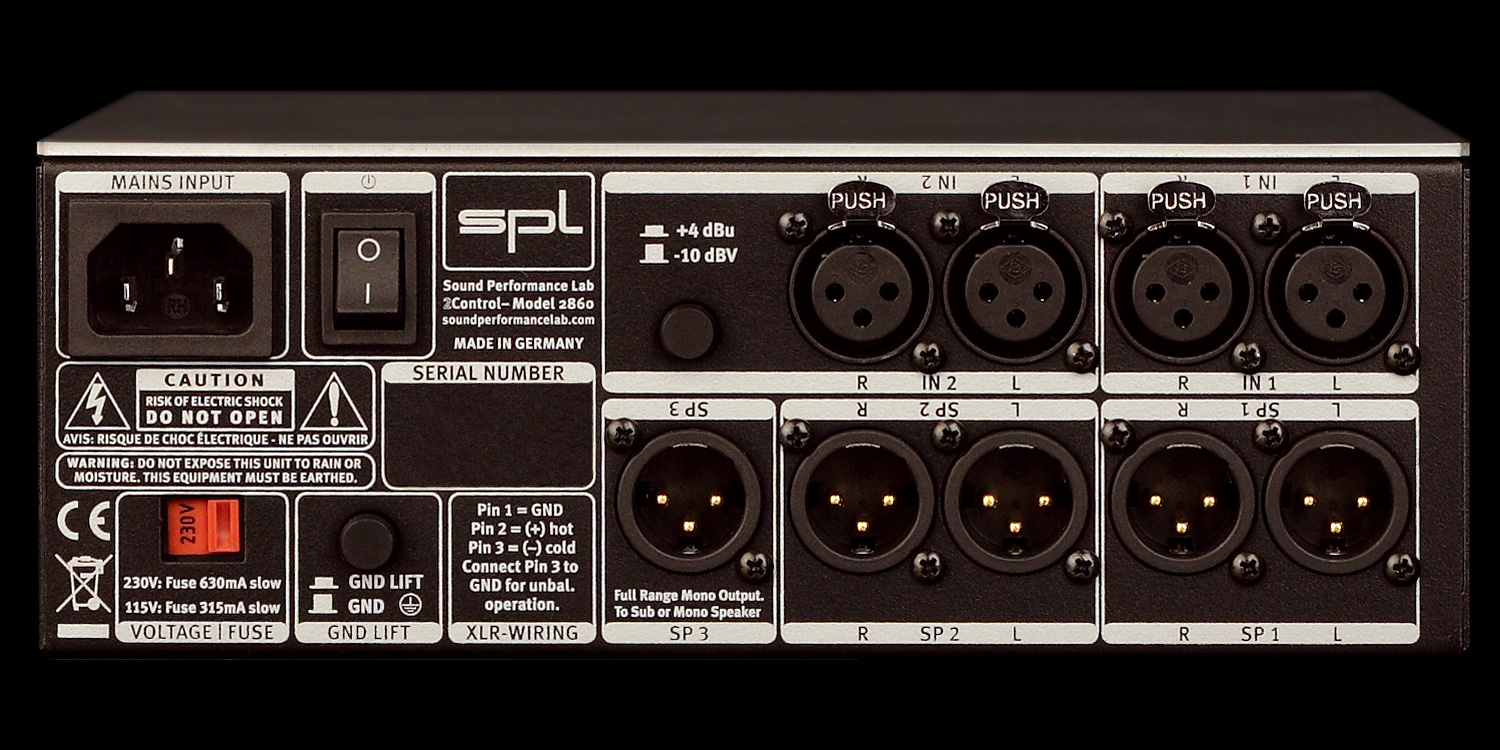

- Versatile Connectivity: Connect and select between two stereo sources, monitor through two stereo speaker sets, and two headphones.
- Subwoofer/Mono Output: Includes a third mono output for subwoofers or mono loudspeakers.
- Input Mixing Capability: Mixes input signals together, providing additive input functionality.
- High-Quality Volume Control: Features an ALPS RK27 “Big Blue” potentiometer and a 45mm full aluminum rotary knob for precise volume adjustments.
- Balanced Inputs: Designed for balanced analog line-level signals, with IN1 calibrated to +4dBu and adjustable IN2 sensitivity for consumer-level CD/DVD players.
- Individual Headphone Controls: Two active output stages for headphones, each with adjustable levels.
- Advanced Crossfeed Control: Part of the Phonitor Matrix, this feature corrects the super stereo effect on headphones, making it easier to judge mixes.
Technical Specifications:
- Analog Inputs & Outputs: XLR (balanced)
- Maximum Input & Output Gain: 21.5 dBu
- Input Impedance: 20 kΩ
- Output Impedance: 75 Ω
- Frequency Range: 10 Hz – 100 kHz (-3 dB)
- THD +N: 0.005% (0 dBu, 10 Hz – 22 kHz)
- Noise: -96 dBu (A-weighted)
- Crosstalk: -70 dB (1 kHz)
- Common Mode Rejection: 60 dB (1 kHz)
- Dynamic Range: 117 dB
- Headphones Output: 6.35 mm (1/4") TRS Jack
- Source Impedance: 22 Ω
- Noise (Headphones): -85 dBu (A-weighted, 600 Ω)
- Power Supply: Internal Linear with Toroidal Transformer
- Operating Voltage: +/- 15 V (analog audio), +12 V (relays and LEDs)
- Mains Voltage: Selectable (230 V AC / 50 Hz; 115 V AC / 60 Hz)
- Power Consumption: Max. 10 W
- Dimensions: 215 x 100 x 220 mm (W x H x D)
- Unit Weight: 2.1 kg
- Short Description:
- Speaker & headphone monitoring controller
- Bundled:
- No
- Amp Class:
- None
- Audio Inputs:
- XLR
- Audio Outputs:
- XLR
- california pro_65:
- No
- Connectivity:
- XLR;XLRf
- Features:
- 2 Outputs
- Form Factor:
- Desktop
- Model:
- 2861
- Number of Digital RCA Inputs:
- 0
- Number of L/R RCA Inputs:
- 0
- Number of Channels:
- 2
- SKU:
- SPL-2CONTROL
